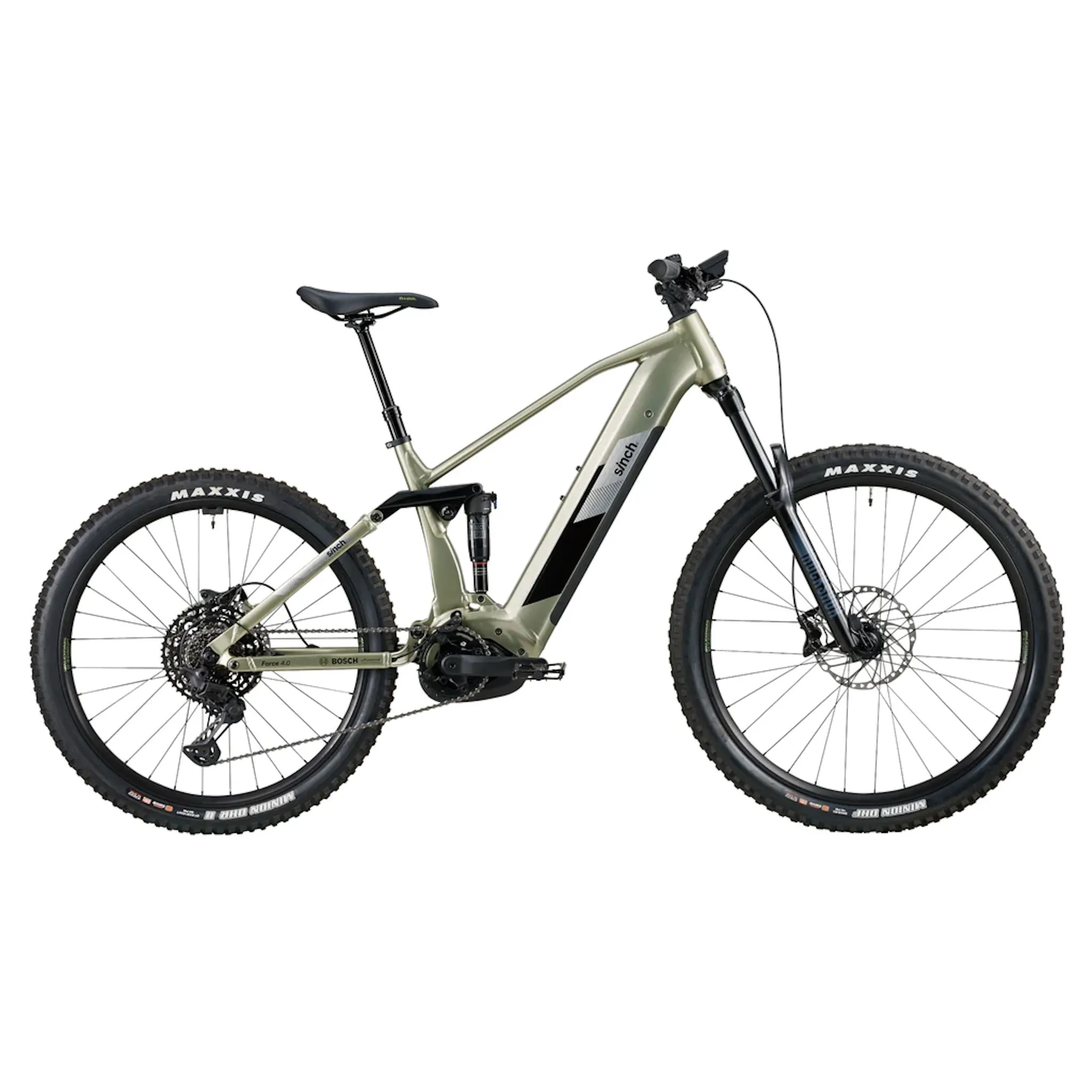

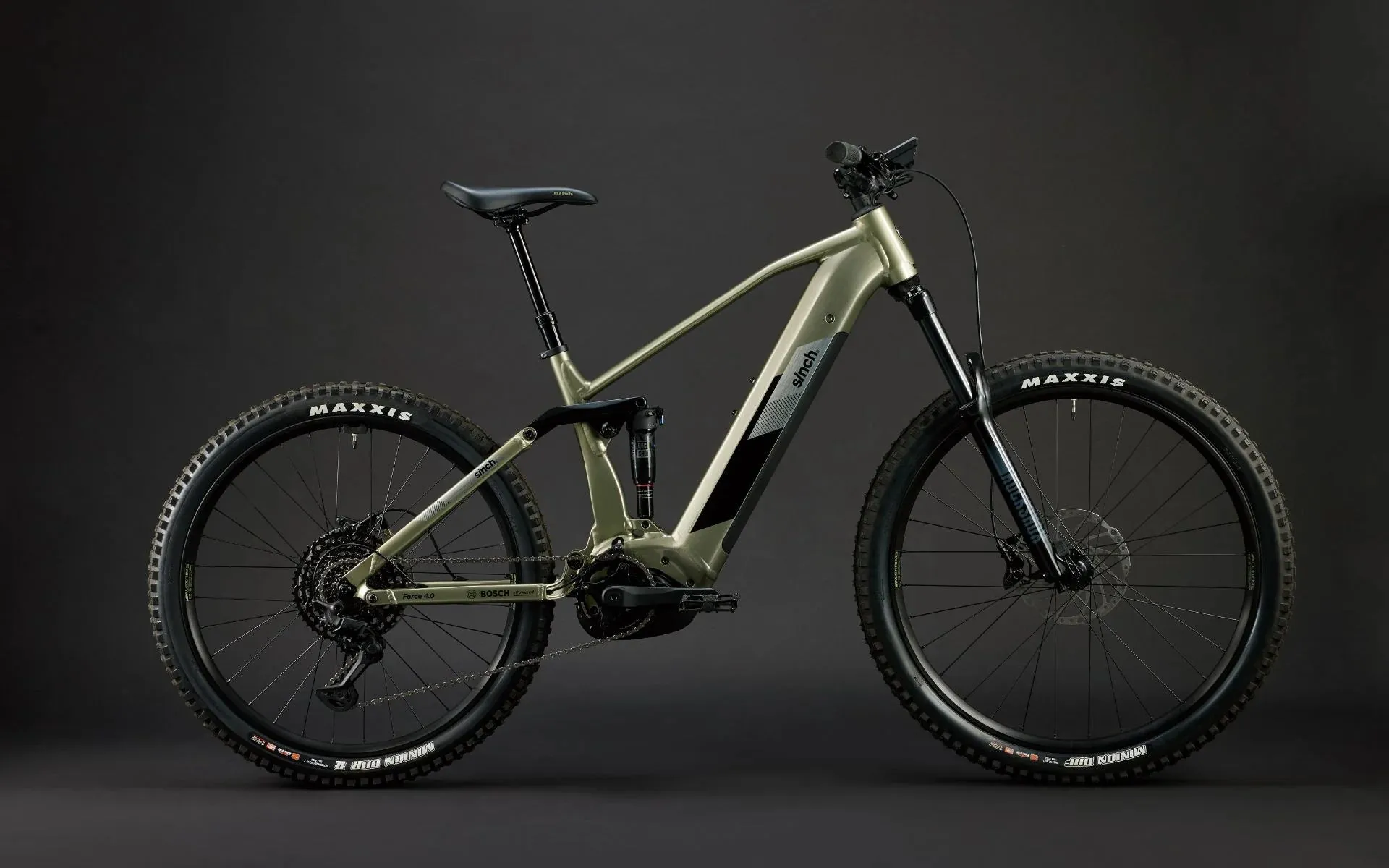

Introducing the Force 4: A full suspension e-MTB boasting Mullet geometry and internal cable routing frame design. Equipped with Bosch's smart system technology and Kiox 300 display for effortless connectivity and activity tracking via eBike Flow app. Embrace the outdoors, stay active, and experience limitless fun with this versatile go-anywhere e-MTB.
Specifications
Frameset

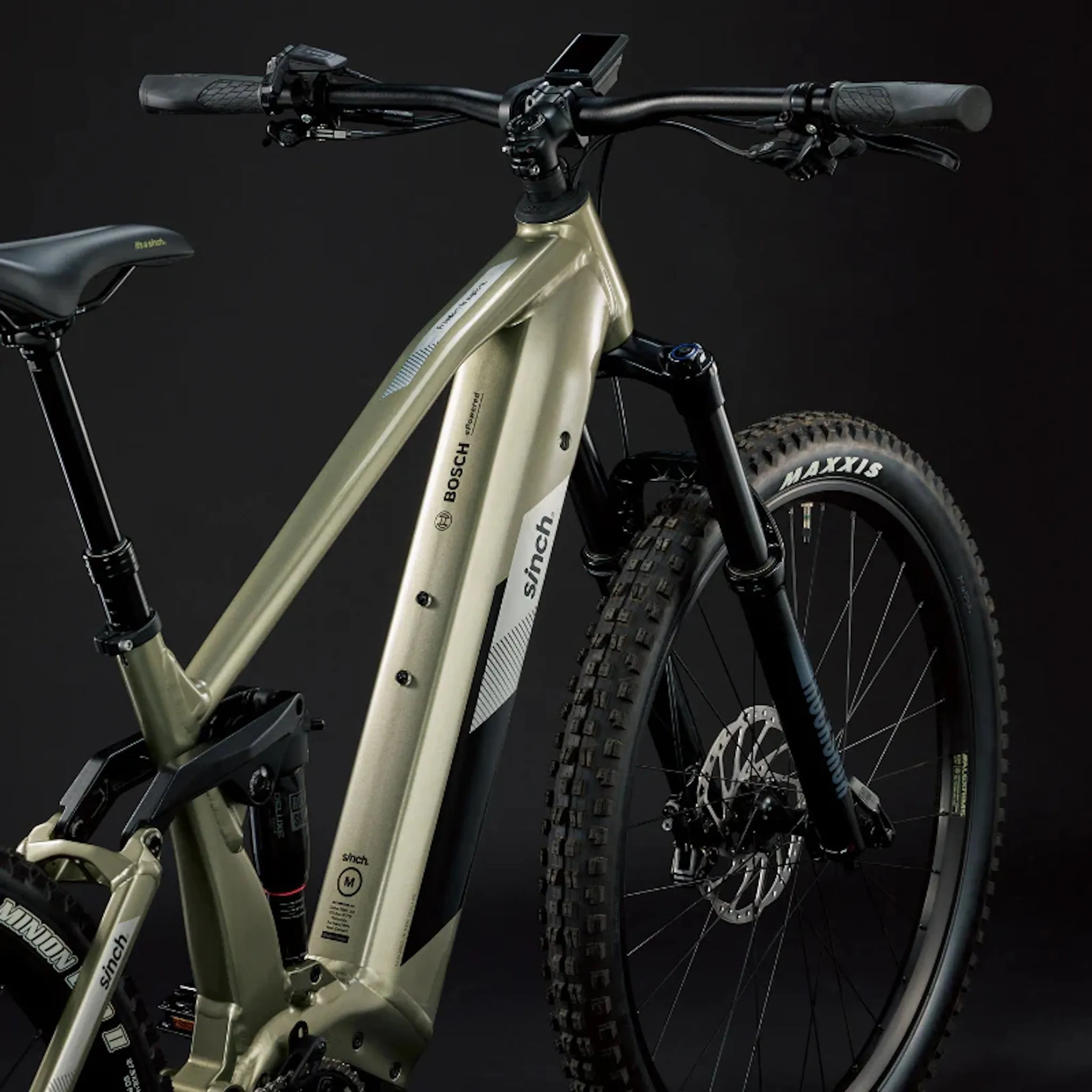

Frame 6061 E Bike Specific Aluminum Suspension Mullet Frame with
150mm rear travel and fully intergrated and removable Down Tube battery and
internal cable management system
Front Suspension Rock Shox 35 Silver TK Solo Air 110 x 15mm boost thru axle, 160mm travel with rebound adjust and lockout

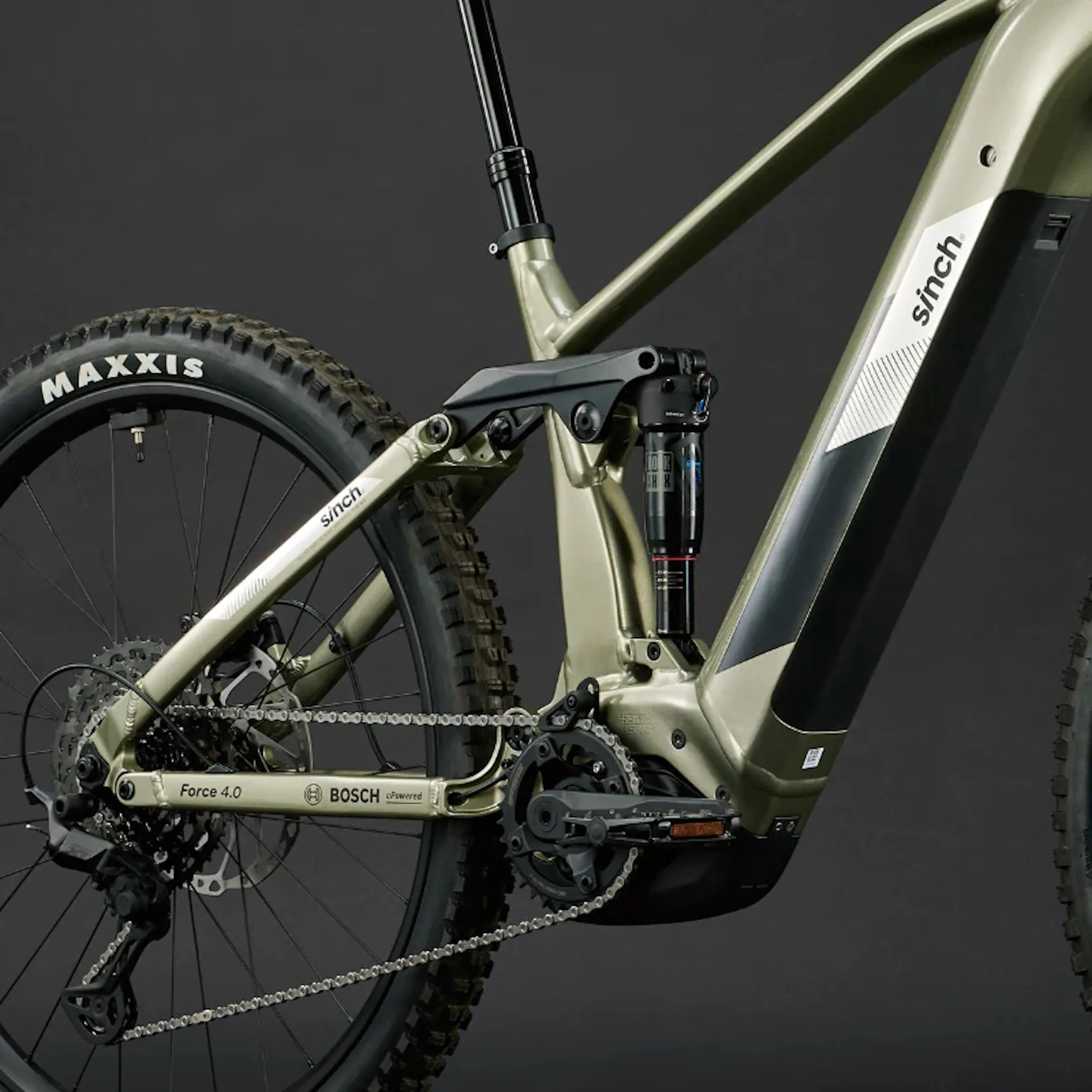

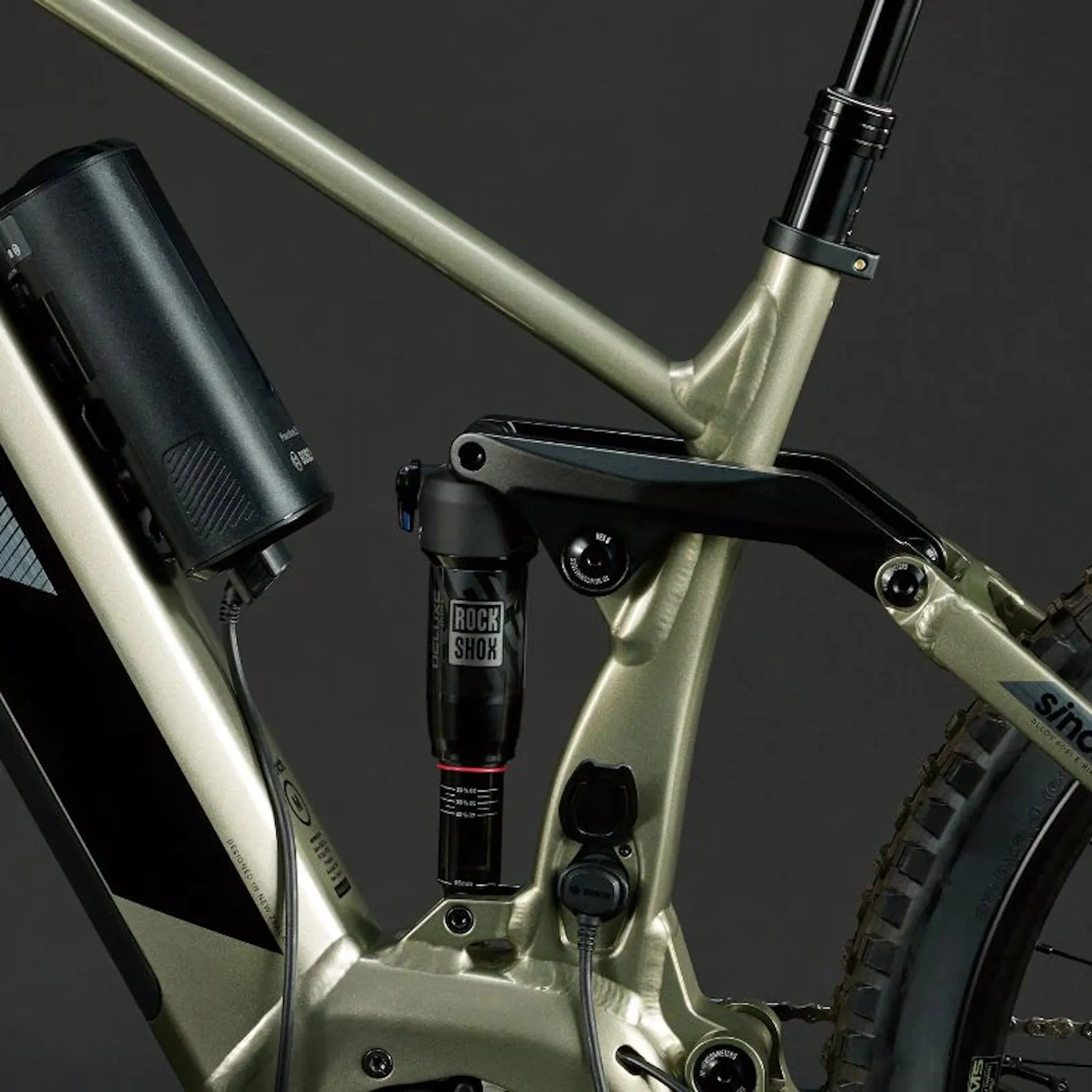

Rear Suspension Rock Shox Deluxe Select RL custom tuned with rebound adjust and lockout
Motor

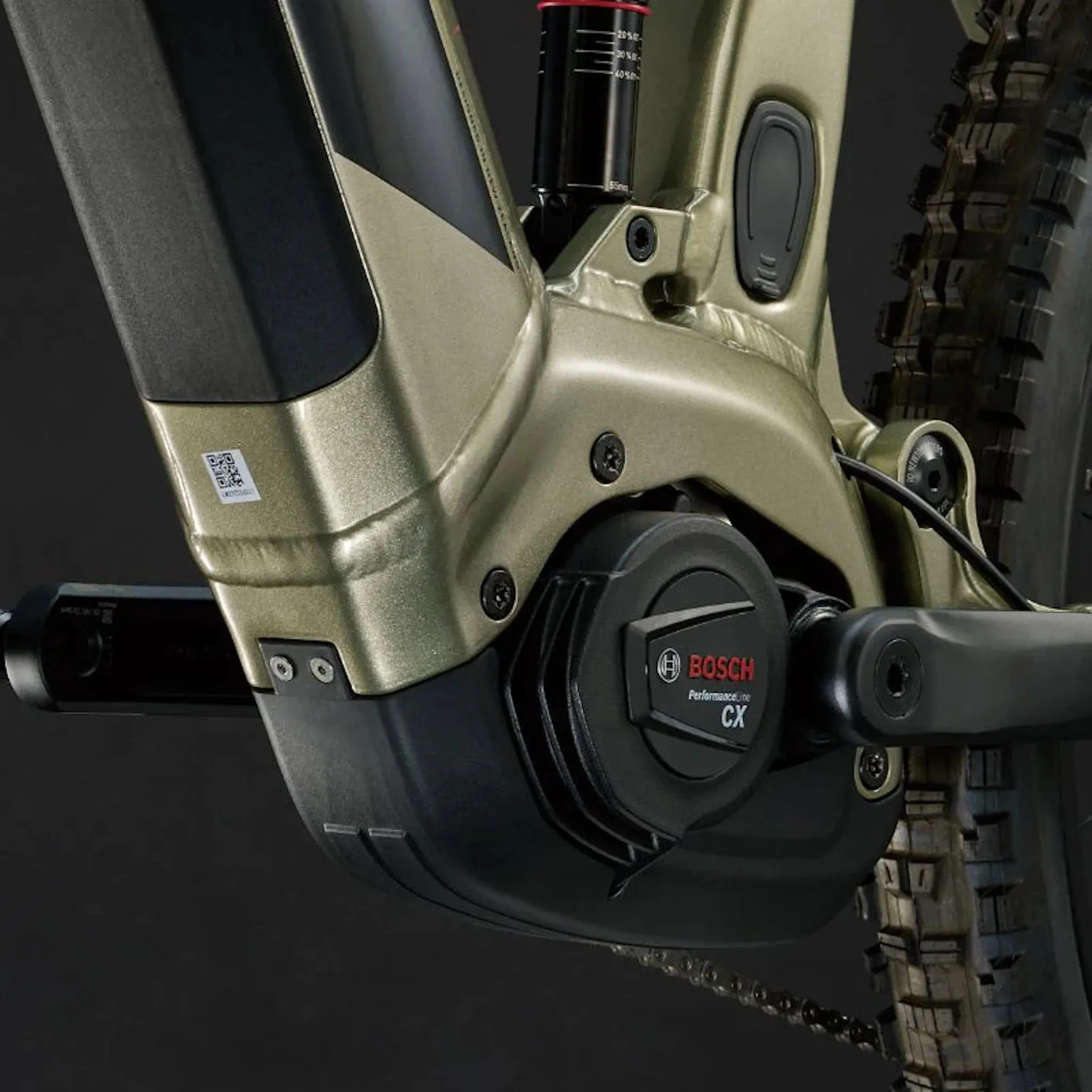

Drive Unit Bosch Performance Line CX Gen 4 250watt 85Nm, 32km/hr with walk assist mode
Battery Bosch PowerTube, 36V 16.7Ah 625Wh
Display Bosch Kiox 300
Controller Switch Bosch LED remote
Wheels
Hubs Shimano TC500 Boost 110x15mm Thru axle 32H front, TC500 Boost 148x12mm Thru axle 32H rear
Rims Alex EM30 Double Wall Front=29”, Rear=27.5” 32H F/V
Tyres Maxxis Minion DHF 29x2.6” front, Minion DHR II 27.5x2.4” rear Foldable, 3C MaxxTerra TR NEXO puncture protection
Drivetrain
Shifter Shimano Deore XT SL-M8130 11 Speed
Derailleur Shimano Deore XT LinkGlide RD-M8130 SGS Shadow Plus 11 Speed
Crankset FSA Alloy with 34T Chainring and Chain device
Cassette Shimano Cassette LG400 LinkGlide 11-50T 11 Speed
Chain Shimano CN-LG500 LinkGlide
Pedals Sinch Alloy platform
Components

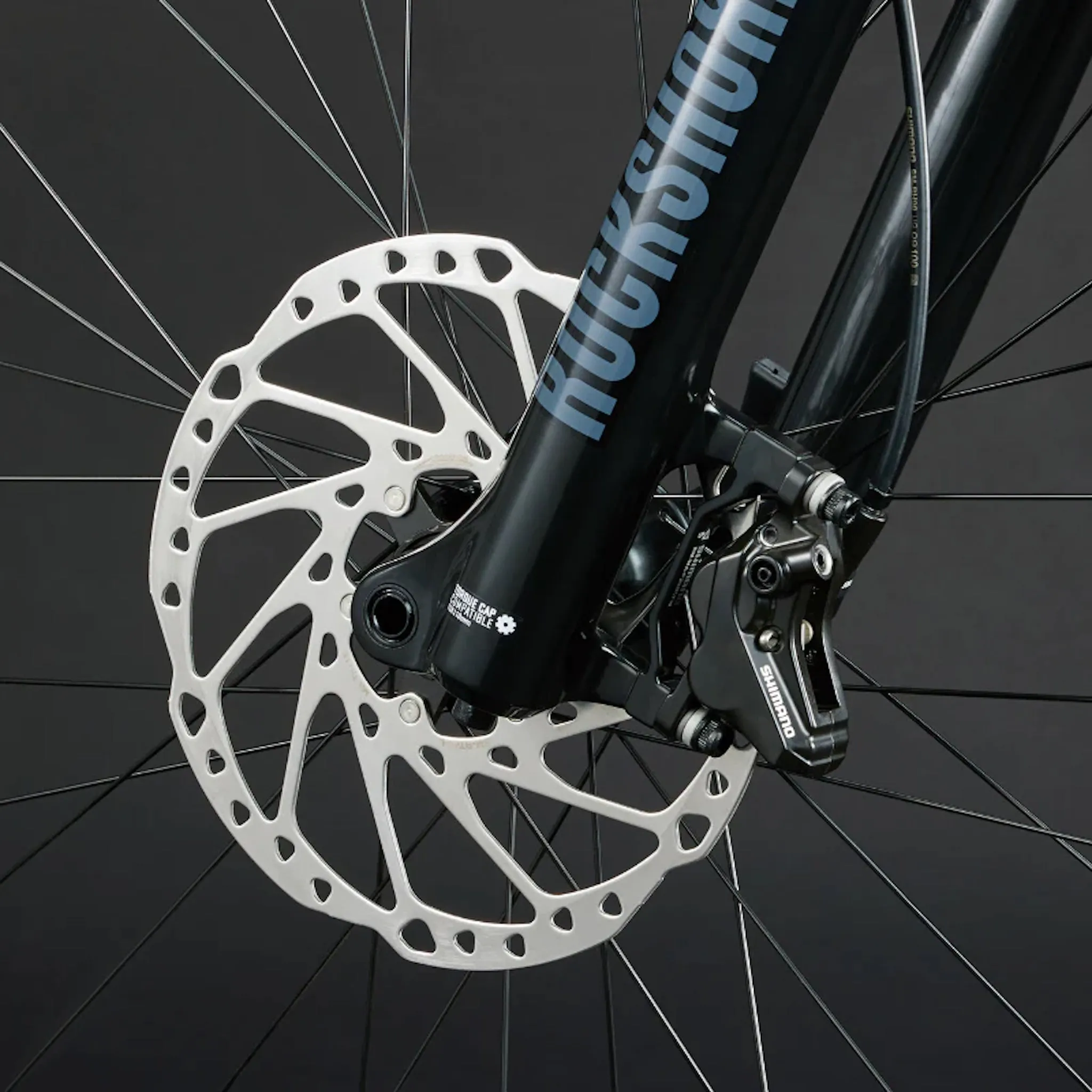

Brakeset Shimano MT420 4 Piston Hydraulic disc, 203mm rotors
Saddle Sinch Sports 150mm Gel
Seat post Dropper, S=120, M,L=150, XL=175mm travel, Internal routing,
30.9mm
Bar Sinch Alloy Riser, 15mm rise, 9° sweep, 780mm
Stem Sinch Alloy 31.8mm, 0-degree
Headset Acros AZX-673 integrated
Grips Sinch Sports Gel Lock-on triple density
Accessories
Lights N/A
Accessories Range extender PowerMore 250 compatible, Sinch carry case
Sizes S,M,L,XL
Sizing
S: 156-166cm rider height
M: 164-176cm rider height
L: 174-186cm rider height
XL: 184-200cm rider height
